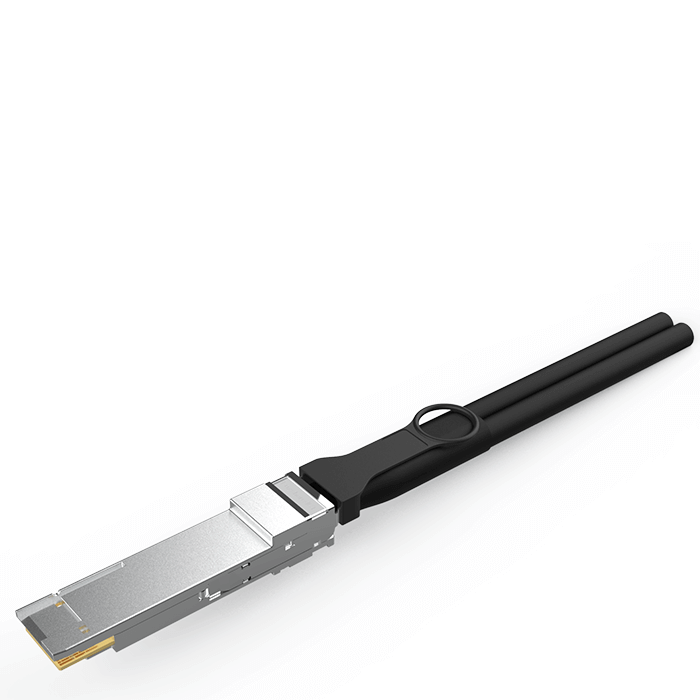

S-QSFP-DD/U-QSFP-DD Copper Cable

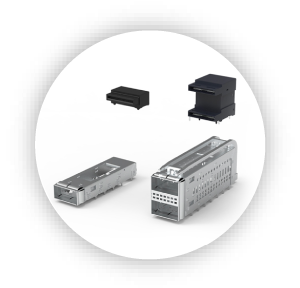

Luxshare-TECH is the leading Super QSFP-DD(200G)/Ultra QSFP-DD(400G) solution provider in the industry by developing the end-to-end products including copper cable, the corresponding connector and cage.


FEATURES & BENEFITS
  • Compliant with QSFP-DD MSA Specification
  • SFF-8679 electrical interface compliant
  • SFF-8636 management interface support
  • Compliant with IEEE802.3Bj, By, IEEE802.3CD Standard
  • Support 25G and 50G (PAM4) electrical data rates/channel
  • I2C for EEPROM communication
  • Pull to Release latch design
  • 30~26AWG Cable Optional
  • Excellent EMI/EMC performance 360 degree cable shield termination
  • Advantage dual side pre-solder automated assembly technologies
  • Excellent SI performance
  • Ultra QSFP-DD and Super QSFP-DD both are backward compatible with the QSFP(Qual Small Form Factor)
了解更多

Product Numbers Product Description
LA0DD001-SD-R Passive Cable QSFP-DD to QSFP-DD 30AWG 0.5M
LA0DD002-SD-R Passive Cable QSFP-DD to QSFP-DD 30AWG 1.0M
LA0DD003-SD-R Passive Cable QSFP-DD to QSFP-DD 30AWG 1.5M
LA0DD008-SD-R Passive Cable QSFP-DD to QSFP-DD 30AWG 2.0M
LA0DD016-SD-R Passive Cable QSFP-DD to QSFP-DD 30AWG 2.5M
LA0DD045-SD-R Passive Cable QSFP-DD to QSFP-DD 30AWG 3.0M
LA0DD101-SD-R Active cable QSFP-DD to QSFP-DD 30AWG 4.0m
LA0DD102-SD-R Active cable QSFP-DD to QSFP-DD 30AWG 5.0m
LA0DD103-SD-R Active cable QSFP-DD to QSFP-DD 30AWG 6.0m
LA0DD104-SD-R Active cable QSFP-DD to QSFP-DD 30AWG 7.0m
