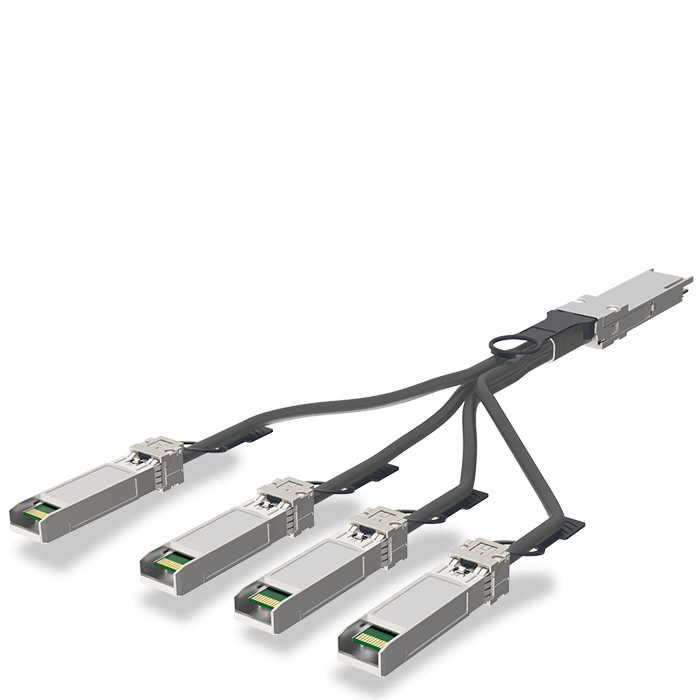

QSFP+ to 4xSFP+Fan-out Copper Cable

Luxshare-TECH QSFP+ to 4xSFP+ fan-out copper cable assemblies provide a very flexible solution for telecom and data center customers to design the system architecture and topology of the interconnection among devices easily. It could resolve the data transmission well when switch device is updated or some racks are bridged for communication. Based on years of experience, Luxshare-TECH could provide the full range of DAC and ACC products to support 0.5m~10m transmission by a cost-saving method.


FEATURES & BENEFITS
  • Compliant with SFF-8431/SFF-8436
  • Compliant with IEEE802.3ba, IEEE802.ae
  • 4 independent full-duplex passive copper cable transceiver
  • Up to 10 Gbps data rate per channel
  • High-Density QSFP+ 38-PIN and 4x SFP+ 20-PIN Connector
  • DAC length from 0.5m~7m, ACC length up to 10m by 32AWG~24AWG high speed raw cable
  • Single +3.3V power supply
  • Excellent and stable SI performance
  • I2C based two-wire serial interface of EEPROM signal
  • Operating temperature: 0℃~+70℃
  • Storage Ambient Temperature:-40℃~+85℃
  • Power level : Less than 30mw
  • All materials comply with Rosh, and PCB, cable can achieve HF and others
了解更多

Product Numbers Product Description
LA0QF073-SD-R QSFP+ TO 4XSFP+ PASSIVE CABLE ASSEMBLY 30AWG-0.5M
LA0QF074-SD-R QSFP+ TO 4XSFP+ PASSIVE CABLE ASSEMBLY 30AWG-1.0M
LA0QF075-SD-R QSFP+ TO 4XSFP+ PASSIVE CABLE ASSEMBLY 30AWG-2.0M
LA0QF076-SD-R QSFP+ TO 4XSFP+ PASSIVE CABLE ASSEMBLY 30AWG-3.0M
LA0QF077-SD-R QSFP+ TO 4XSFP+ PASSIVE CABLE ASSEMBLY 28AWG-3.0M
LA0QF078-SD-R QSFP+ TO 4XSFP+ PASSIVE CABLE ASSEMBLY 26AWG-3.0M
LA0QF079-SD-R QSFP+ TO 4XSFP+ PASSIVE CABLE ASSEMBLY 26AWG-4.0M
LA0QF080-SD-R QSFP+ TO 4XSFP+ PASSIVE CABLE ASSEMBLY 30AWG-5.0M
