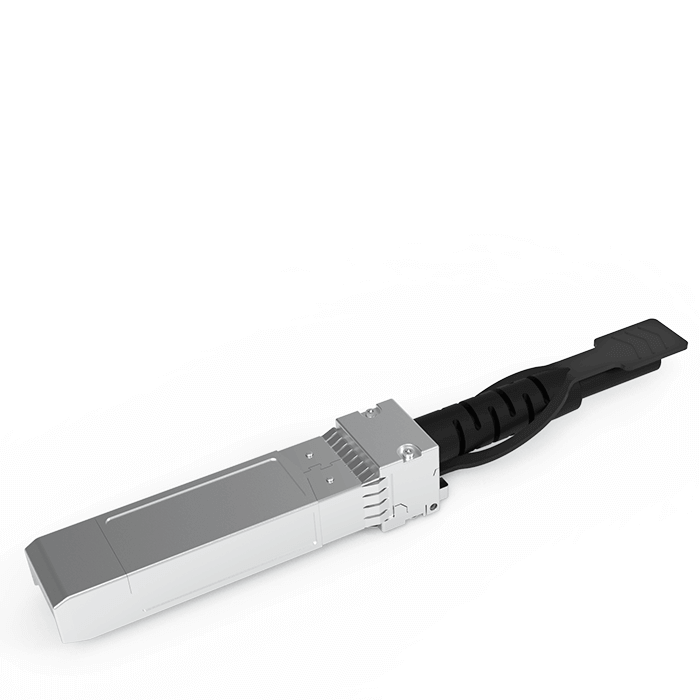

U-SFP Copper Cable

Luxshare-TECH Ultra SFP copper cable is widely adopted in the interconnection between switch unit and computing nodes(56Gbps for Ethernet), the interconnection between server and storage(32Gbps for Fiber Channel) in datacenter and Enterprise IT infranstructure, and adopted in Supercomputing system based on IBTA. It is a high reliability, high aggregate data bandwidth and cost-saving solution.


FEATURES & BENEFITS
  • Compliant with SFF-8431
  • Support IEEE802.3cd, rate up to PAM4 56G
  • 1x(1 channel) base configuration
  • I2C for EEPROM communication
  • 100 Ohms differential impedance
  • Pull to Release latch design
  • 30AWG ~ 26AWG cable available
  • Operation temperature: 0℃~+70℃
  • Storage Ambient Temperature:-40℃~+85℃
  • Relative Humidity< 80%
  • 360 degree EMI crimping shielding
  • All materials comply with RoHS2.0
了解更多

Product Numbers Product Description
LA0SF110-SD-R Passive cable U-SFP to U-SFP 30AWG 1.0m
LA0SF111-SD-R Passive cable U-SFP to U-SFP 28AWG 2.0m
LA0SF112-SD-R Passive cable U-SFP to U-SFP 26AWG 3.0m
LA0SF113-SD-R Passive cable U-SFP to U-SFP 30AWG 2.0m
