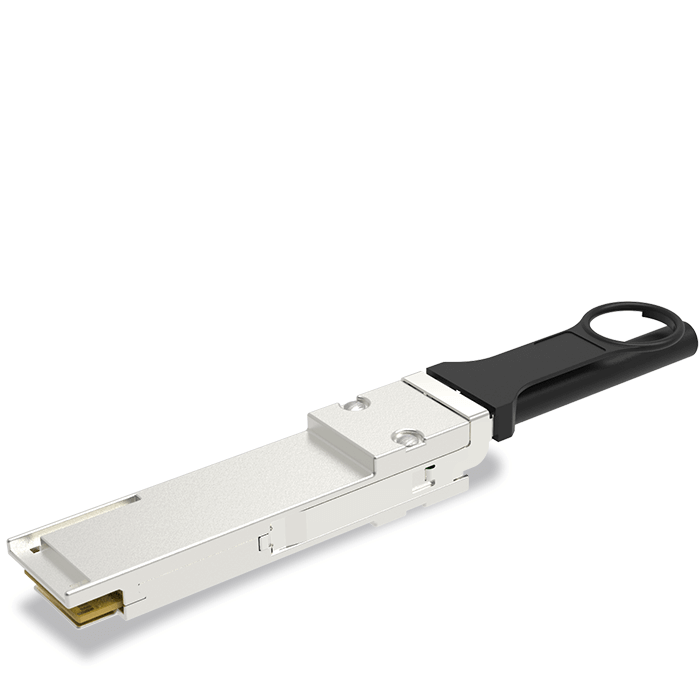

U-QSFP Copper Cable

Luxshare-TECH 200Gbps Ultra QSFP copper cable is widely adopted in the interconnection among switch units in datacenter based on Ethernet, and adopted in Supercomputing system based on IBTA. It is a high reliability, high aggregate data bandwidth and cost-saving solution.


FEATURES & BENEFITS
  • Compliant with SFF-8436
  • Compliant with IEEE802.3cd
  • Up to 56Gbps data rate per channel
  • Mating with the standard 38-pin QSFP connector
  • Ultra QSFP DAC support length up to 3m(26AWG), ACC support length up to 5m(26AWG)
  • Single +3.3V power supply
  • Excellent SI performance
  • I2C based two-wire serial interface of EEPROM signal
  • Operating temperature: 0℃~+70℃
  • Storage Ambient Temperature: -40℃~+85℃
  • Power level I: less than 30mw(DAC)
  • All materials comply with RoHS2.0
了解更多

Product Numbers Product Description
LA0QF122-SD-R U-QSFP PASSIVE CABLE ASSEMBLY 30AWG-1.0M
LA0QF123-SD-R U-QSFP PASSIVE CABLE ASSEMBLY 28AWG-2.0M
LA0QF125-SD-R U-QSFP PASSIVE CABLE ASSEMBLY 26AWG-1.5M
LA0QF127-SD-R U-QSFP PASSIVE CABLE ASSEMBLY 28AWG-2.5M
LA0QF133-SD-R U-QSFP PASSIVE CABLE ASSEMBLY 28AWG-2.25M
