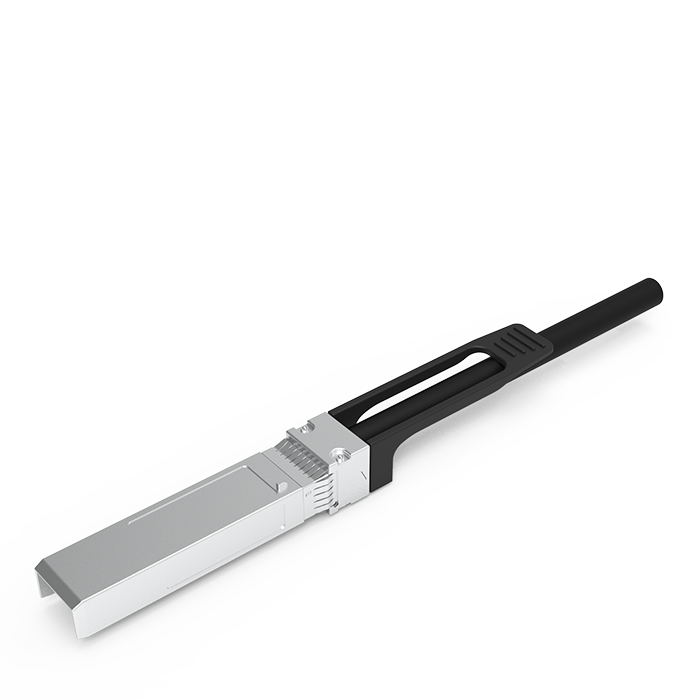

S-SFP-DD/U-SFP-DD Copper Cable

Luxshare-TECH is the leading Super SFP-DD(50G)/Ultra SFP-DD(100G) solution provider in the industry by developing the end-to-end products including copper cable, the corresponding connector and cage.


FEATURES & BENEFITS
  • Compliant with SFP-DD MSA Specification
  • 2 independent full-duplex copper cable transceiver
  • Compliant with IEEE802.3by, IEEE802.3cd Standard
  • Support 28G(NRZ) and 56G (PAM4) electrical data rates/channel
  • 100G DAC length up to 3meter, ACC length up to 5meter
  • I2C for EEPROM communication
  • Pull to Release latch design, straight pull tab design
  • Operating temperature: 0℃~+70℃
  • Excellent SI performance
了解更多

Product Numbers Product Description
LA0SSXXX-SD-R Passive Cable Assembly 30AWG 1M
LA0SSXXX-SD-R Passive Cable Assembly 28AWG 2M
LA0SSXXX-SD-R Passive Cable Assembly 26AWG 3M
LA0SSXXX-SD-R Passive Cable Assembly 30AWG 4M
LA0SSXXX-SD-R Passive Cable Assembly 28AWG 5M
LA0SSXXX-SD-R Passive Cable Assembly 26AWG 7M
