S-SFP-DD/U-SFP-DD

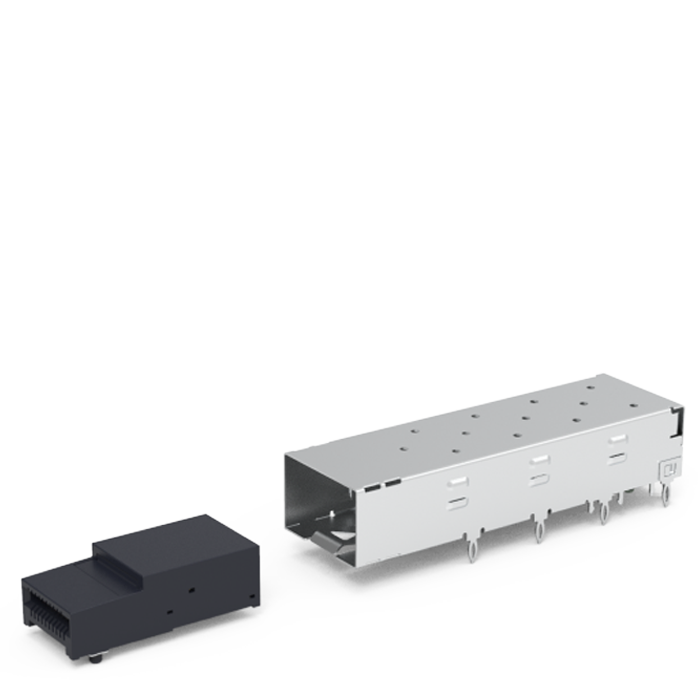

Luxshare-TECH's Super SFP-DD and Ultra SFP-DD connector's pitch is 0.8mm, It has double density compared with U-SFP. Each port has two channels, supports data rate up to 56Gbps, potential to 112Gbps as aggregated bandwidth. Solder pads on connector help to enhance welding robustness. Cage construction features EMI shielding available in the form of metal spring. Additional features available include light pipes, heat sinks and many other custom features.


FEATURES & BENEFITS
  • Size is as small as Ultra SFP connector
  • Support 25 Gbps/Channel for Ethernet application and 28Gbps/channel for FC application, 56Gbps PAM4/channel
  • Enhanced EMI cage design provides excellent EMI-protection and thermal performance
  • Solder pads on connector help to enhance welding robustness
了解更多

Product Numbers Product Description
PSD040-7500-001-1R U-SFP-DD Connector, 40P, Au30u", SMT, With PAD
PSDB40-6300-001-1H U-SFP-DD Connector,40P,Au30u",SMT,With PAD
PSDC11-E300-060-0R SFP-DD-1X1 CAGE, HEIGHT 3.05MM,OPEN TOP,WITH HEAT SINK(H 16mm)
PSDC15-E3B0-010-0R SFP-DD 1X1 CAGE,2 EON in the rear-end,w/ heatsink(13.7mm), w/o lightpipe
PSDC15-E300-110-0R SFP-DD 1X1 CAGE,2 EON in the rear-end,w/o heatsink,w/o lightpipe,window open on the top
PSDC15-E300-010-0R SFP-DD 1X1 CAGE,2 EON in the rear-end,w/o heatsink,w/o lightpipe,small window open on the top
